Partition boards PDL 01 – λD = 0,037

Description

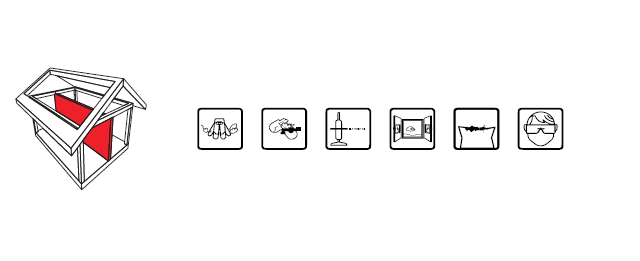

Shape-stable boards for sound and thermal insulation of internal building elements. In the dry-build system, the PDL 01 partition boards are designed together with metal C-profiles 50, 75, 100mm and gypsum plasterboards for lightweight partitions with a fire resistance of 30 minutes. The boards are also suitable for the insulation of residential containers. The products are supplied in packs on pallets – 12 packs of one size per pallet. Pallets are non-returnable.



Order number Thickness [mm] Dimensions [mm] Pcs/package m2 / package m3 / package m2 / palette m3 / palette RD [m2 K/W]
31110401 40 625 x 1250 30 23,44 0,94 281,28 11,25 1,05
31110501 50 625 x 1250 24 18,75 0,94 225,00 11,25 1,35
31110601 60 625 x 1250 20 15,63 0,94 187,56 11,25 1,60
31110801 80 625 x 1250 15 11,72 0,94 140,64 11,25 2,15
31111001 100 625 x 1250 12 9,38 0,94 112,56 11,25 2,70
31111201 120 625 x 1250 10 7,81 0,94 93,72 11,25 3,25
31111401 140 625 x 1250 8 6,25 0,88 75,00 10,50 3,75
